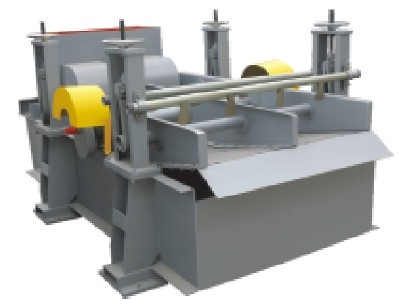

振框式平篩Vibrating Screen
用途/特點
該設備用于廢紙漿的粗篩，也可用于壓力篩尾漿的篩選，用于處理稍大的雜質如塑料、橡膠、乙烯、乙烯基氯化物等雜志。具有結構簡單，排渣能力大，操作維修方便等特點。
該設備有孔篩板和縫篩板兩種，其中孔篩用于粗篩，縫篩用于壓力篩尾漿處理。
Application/ Features
The equipment is used for the pulp rough screen and reject screening of pressure screen, to process larger impurities such as plastics, rubber, vinyl chloride and other impurities. Simple structure , the great elimination capability of slag, convenient operation and maintenance features.
The equipment has hole screen plate and joint screen plate, of which hole screen plate is for the disposal of pressure screen reject.
主要技術參數Main Technical Parameters
|
型號Type |
ZSK5 |
ZSK4 |
ZSK6 |
ZSK7 |
|||||
|
篩選面積Screen area（㎡） |
1 |
2 |
3 |
4 |
|||||
|
進漿濃度Concentration of Feeding Pulp |
孔篩Hole screen（%） |
1.2~1.5 |
|||||||
|
縫篩Slot screen（%） |
0.5~0.8 |
||||||||
|
生產能力Capacity：t/d |
處理尾漿 Treating tail pulp |
孔篩Hole screen（t/d） |
4.5~15 |
9~30 |
13.5~45 |
18~60 |
|||
|
縫篩Slot screen（t/d） |
2~4.5 |
4~9 |
6~13.5 |
8~18 |
|||||
|
主流程 Main flow |
孔篩Hole screen（t/d） |
7.5~25 |
15~50 |
22.5~75 |
30~100 |
||||
|
縫篩Slot screen（t/d） |
3.5~7.5 |
7~15 |
10.5~22.5 |
14~30 |
|||||
|
電機功率Motor（ＫＷ） |
2..2 |
2.2 |
4 |
5.5 |
|||||
|
外形尺寸(長L×寬W×高H)：mm |
2860×1950×1370 |
2760×2560×1440 |
2790×3220×1440 |
3445×3500×1440 |
|||||
|
