碎漿設備

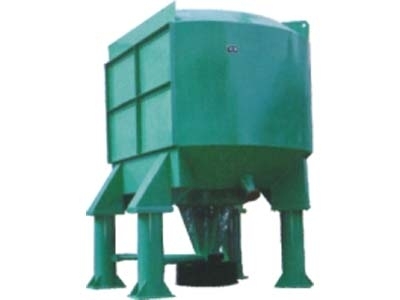

D型水力碎漿機D Model Hydrapulper
用途/特點
D型水力碎漿機主要特點是采用了“D”型槽體、節能伏克斯轉子，內外雙重葉片可節能25%，使廢紙與轉子的接觸更迅速，頻率更高，與傳統水力碎漿機相比，可縮短廢紙碎解時間，在不增加動力和容積的情況下提高生產能力。D型水力碎漿機的轉子和出漿盤高出碎漿機槽體底平面，在轉子周?chē)纬梢粋€(gè)低壓流區，使碎解過程中的粗大雜質從重渣口進入沉渣井。
Application/Features
The main feature of D-type hydrapulper are the use of the D-type groove and the energy saving Vieques rotor ,both internal and external leaves 25% energy saving to make waste paper and rotor contact more quickly, more frequently .Compared with the traditional hydro-pulper, it could shorten the time of pulp breaking and increase productivity without increasing the volume and momentum..D-type hydro-pulper rotor and the outlet tray is above the pulper tank surface to form a low-pressure flow surrounding the rotor to make the coarse impurities into the dregs well from the heavy dregs mouth with regularly sending under the use of grab.
主要技術參數Main Technical Parameters
|
序號SN |
名 稱Name |
D型 |
|||||||
|
1 |
有效容積 Effective capacity （m3） |
10 |
15 |
20 |
25 |
30 |
|||
|
2 |
生產能力 Production capacity（t/d） |
60-90 |
80-120 |
140-180 |
180-230 |
230-280 |
|||
|
3 |
漿料濃度 Pulp concentration（%） |
2-5 |
|||||||
|
4 |
電機型號Motor Model |
Y315L1-6 |
Y355M1-6 |
Y355M2-6 |
Y355L2-6 |
YL400-8 |
|||
|
5 |
功率Power（kw） |
110 |
160 |
185 |
250 |
280 |
|||
|
